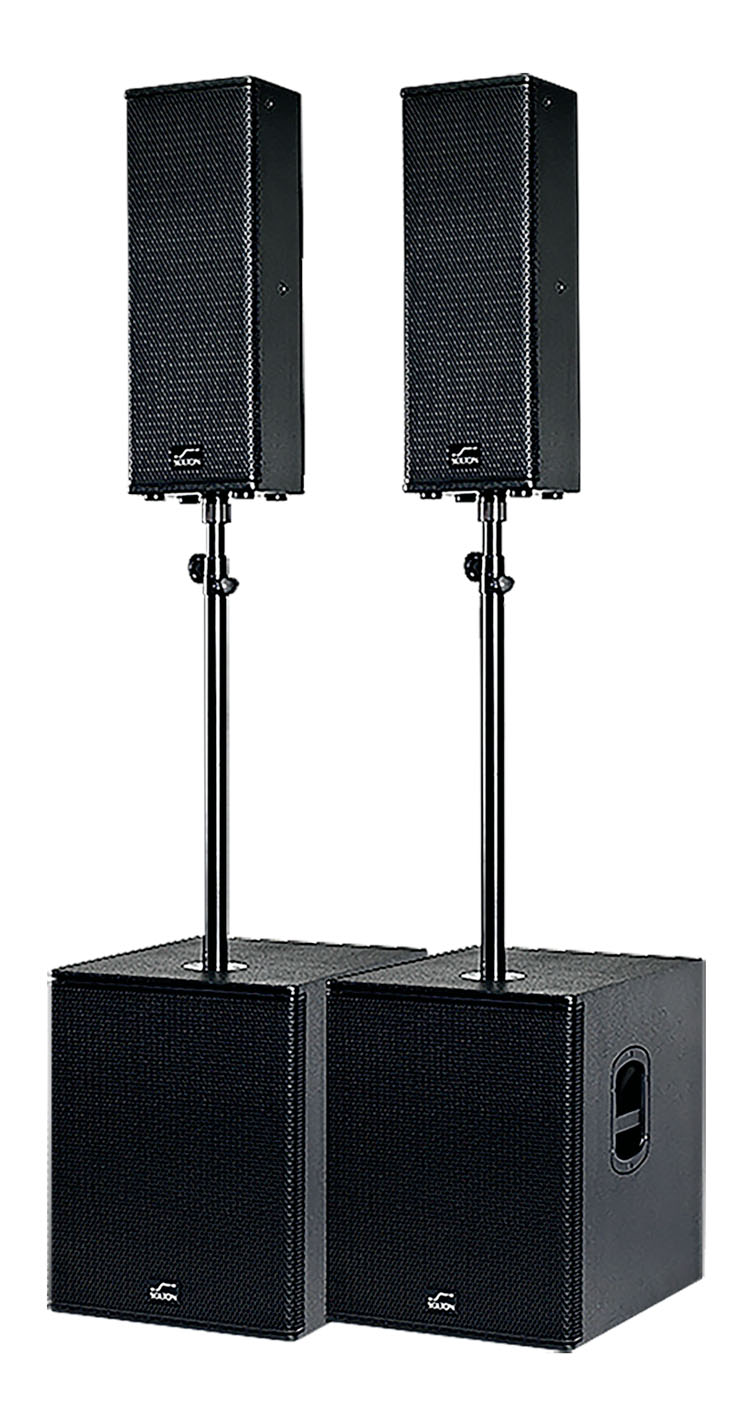

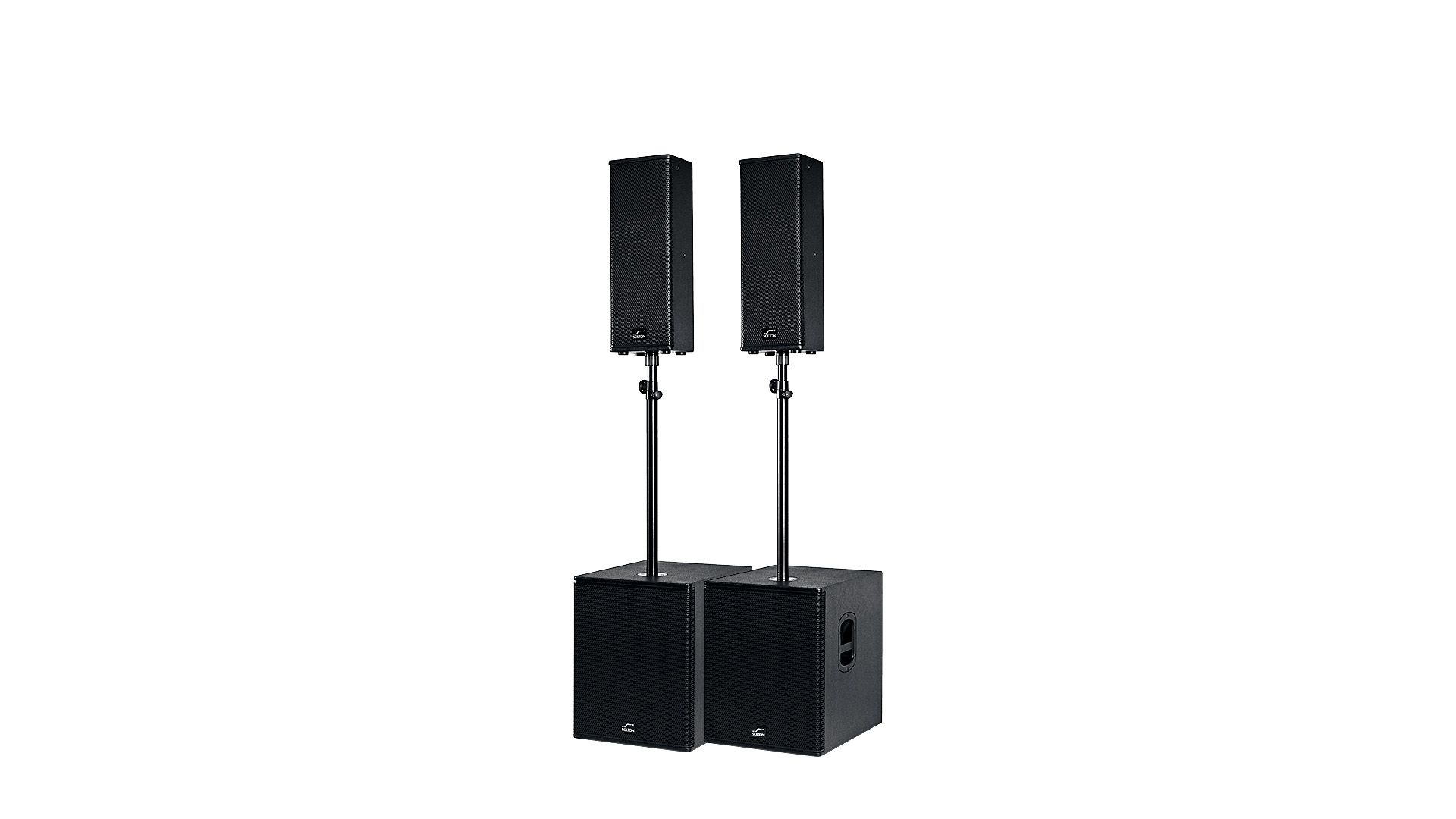

TWIN ARRAY PLUS

Code: 8SISTAP

A powerful active system!
2x aart T 28 A + 2x aart SUB 15 A

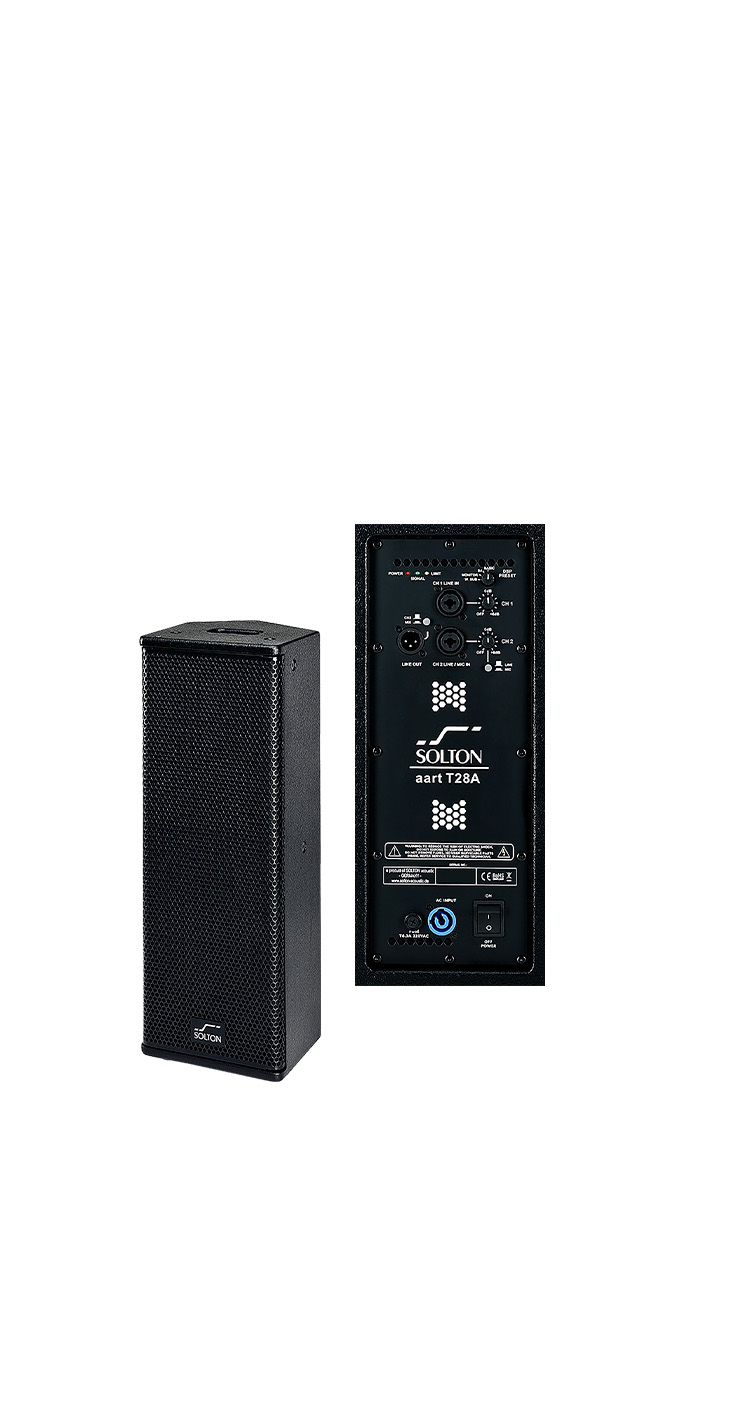

aart T 28 A

The aart T 28 A is a self powered, bi-amped 2-Way high-performance multipurpose loudspeaker systeme, designed for professional portable and installed applications. With a 90°H x 60°V coverage pattern it combines high output capability with excellent sound performance in a multianglel compact enclosure, made of 15 mm plywood.It features a classic combination of two powerful 8”speaker for MF/LF frequency range arranged in D`Appolito clubbed-shaped irradiation, and one 1,75“ voice coil, 1” (25mm) exit HF compression driver for extended high frequency response.The integrated high performance Class D amplifier delivers outstanding dynamic and excellent headroom. The 4 DSP presets and clearly
arranged Input – Output section enable high application flexibilit.The versatile aart T 28 A suits for speech and music applications as a stand-alone fullrange loudspeaker, or MF/ HF speaker in sound reinforcement systems.

Specifications

Type: Self-powered, two-way bi-amped, multifunctional
Frequency Range (-10dB): 60 Hz – 20 kHz
Frequency Response (+- 3dB): 75 Hz – 18 kHz
Coverage Pattern: H 90° x V 60° nominal (user-rotatable)
Power Handling: 400 W continuous, 1600 W peak
System Sensitivity (1w/1m): 99 dB
Maximum SPL (Calculated at 1m): 125 dB continuous, 131 dB peak
HF Driver: 1,75”voice coil, 1” exit compression driver
LF Driver: 2x 8”, 2” voice coil speaker aaCRAAFT
Crossover: Active / DSP
Protection: Dual-band limiter
Active Tuning / Features: 4 DSP presets, 2x Line/Mic IN level & switch,
Line/Mix OUT switchable
Enclosure: Multi-angle, 15 mm birch plywood
Finish: Black polyurea coating
Fittings:7x M8 inserts,1x bar handle, pole socket, U-bracket optional
Protective Grille: Black perforated steel with acoustic transparent foam backing
Connectors: 2x XLR / 6.35 Jack Combo, 1x XLR
Dimensions mm (WxHxD): 250 x 700 x 250
Weight: 14.6 kg

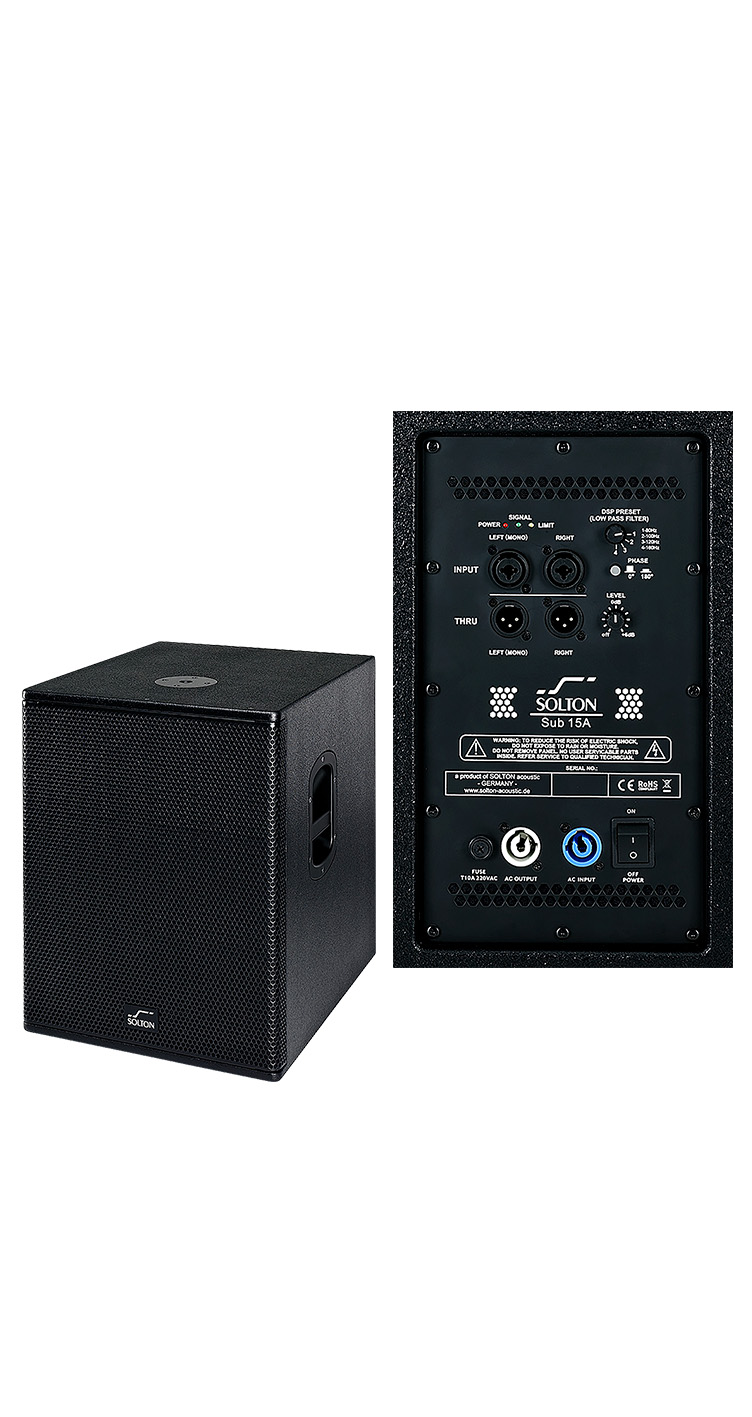

aart SUB 15 A

The Solton aart SUB 15 A is a self-powered single 15” direct-radiating high performance subwoofer system. It has been designed to add high-output, high-impact bass response to the mid-high and fullrange loudspeaker systems in various mobile and installed applications. The aart 15 Sub features a long-excursion, 15” ,4” (100mm) voice coil LF transducer,
and a low distortion port design in a compact reflex enclosure made of 15 mm plywood. The integrated high performance Class D amplifier delivers outstanding dynamic and excellent headroom. The integrated pole mount socket (M20) enables the use of a distance rod in combination with a MF/HF cabinet as a system. The Sub 15A has many features that make it a versatile subwoofer system.

Specifications

Type: Self-powered, Single 15”, bass-reflex, subwoofer
Frequency Range: (-10dB): 35 Hz -250 Hz
Frequency Response (+- 3dB): 40 Hz -200 Hz
Coverage Pattern: Omni
Power Handling: 800 W continuous, 3200 W peak
System Sensitivity (1w/1m): 99 dB
Maximum SPL (Calculated at 1m): 127 dB continuous, 133 dB peak
LF Driver: 15”, 4” voice coil speaker
Crossover: Active, Variable 80 – 200 Hz
Protection: Limiter
Active Tuning/Features: Volume, Variable crossover 80 – 200 Hz, Phase switch
Enclosure: 15 mm birch plywood
Finish: Black polyurea coating
Fittings: 2 x Handles, M20 pole socket
Protective Grille: Black perforated steel with acoustic transparent foam backing
Connectors: 2x Inputs XLR / 6.35 Jack Combo, 2x Thru XLR
Dimensions mm (WxHxD): 460 x 590 x 580
Weight: 31 kg

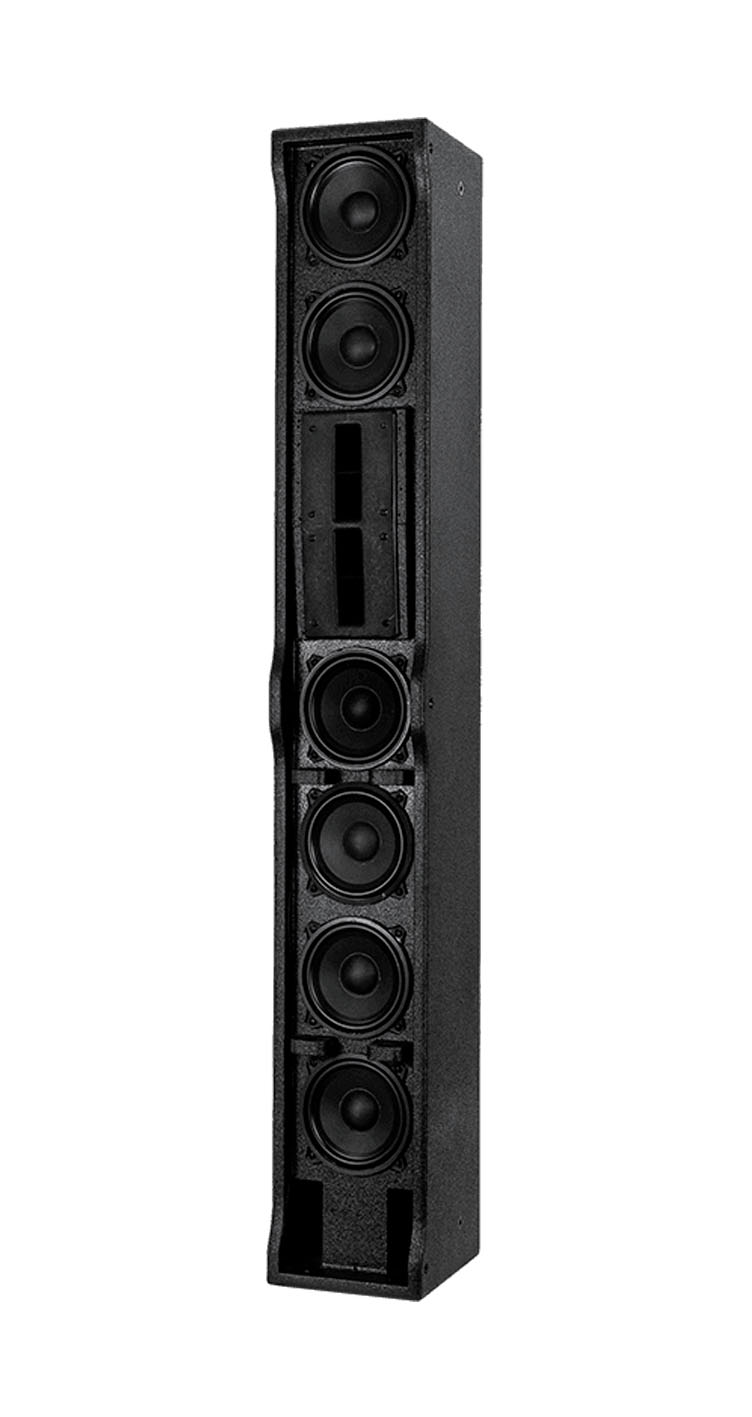

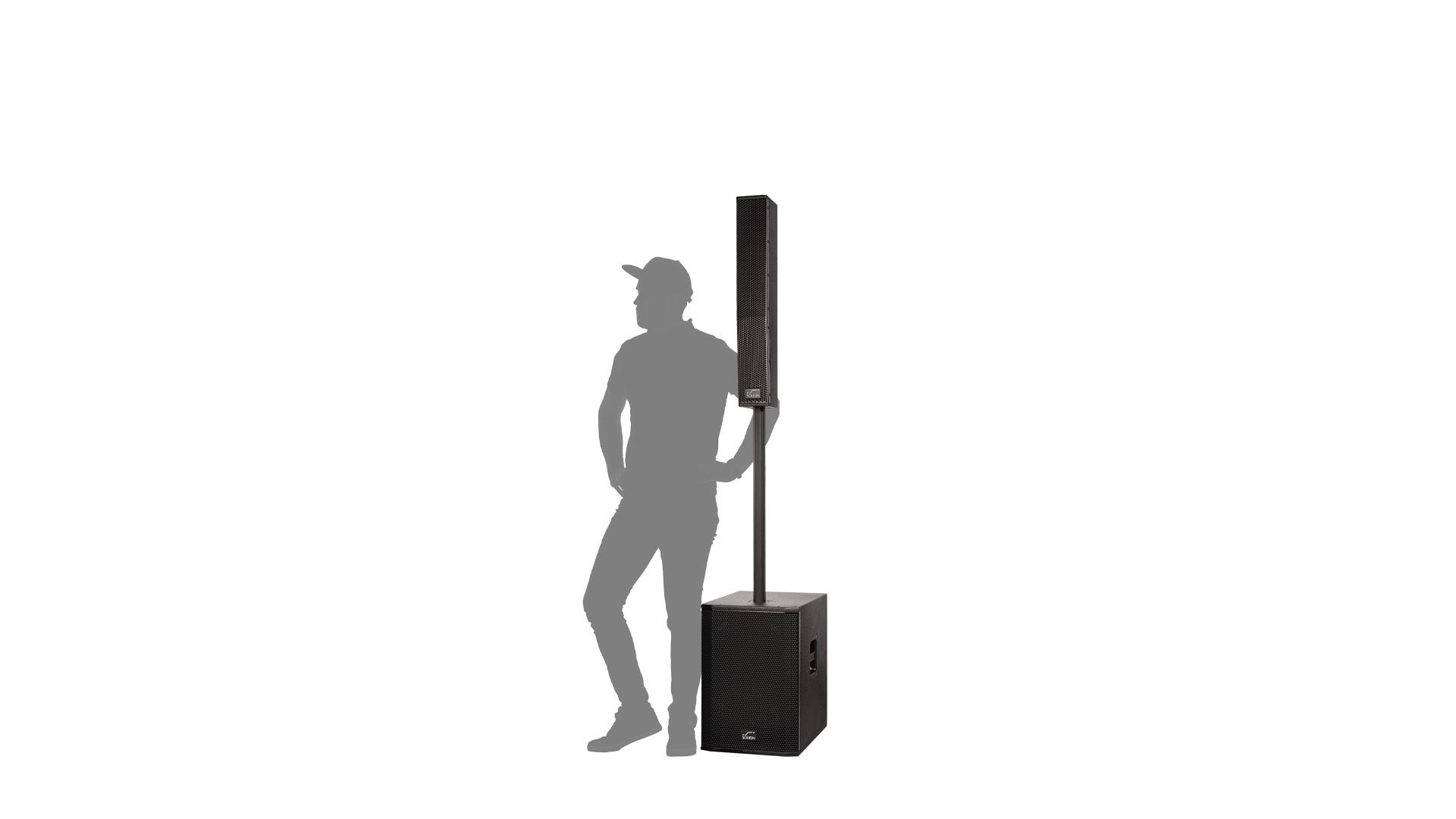

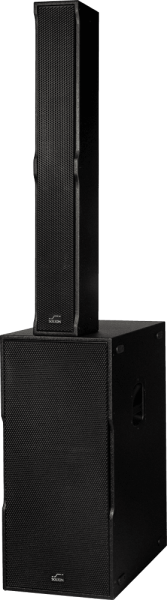

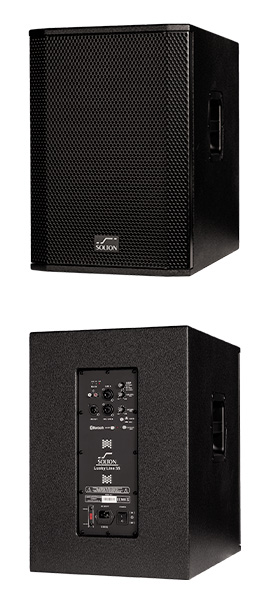

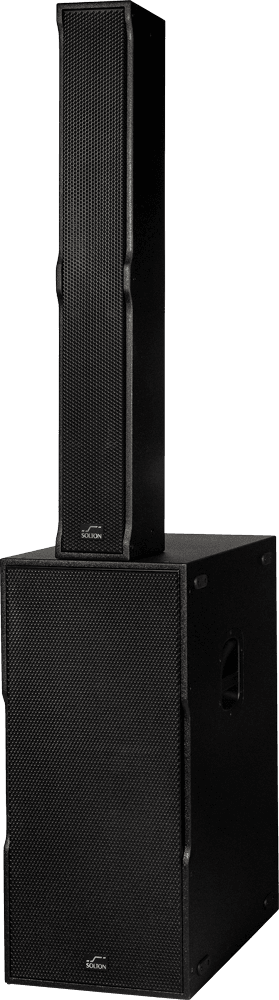

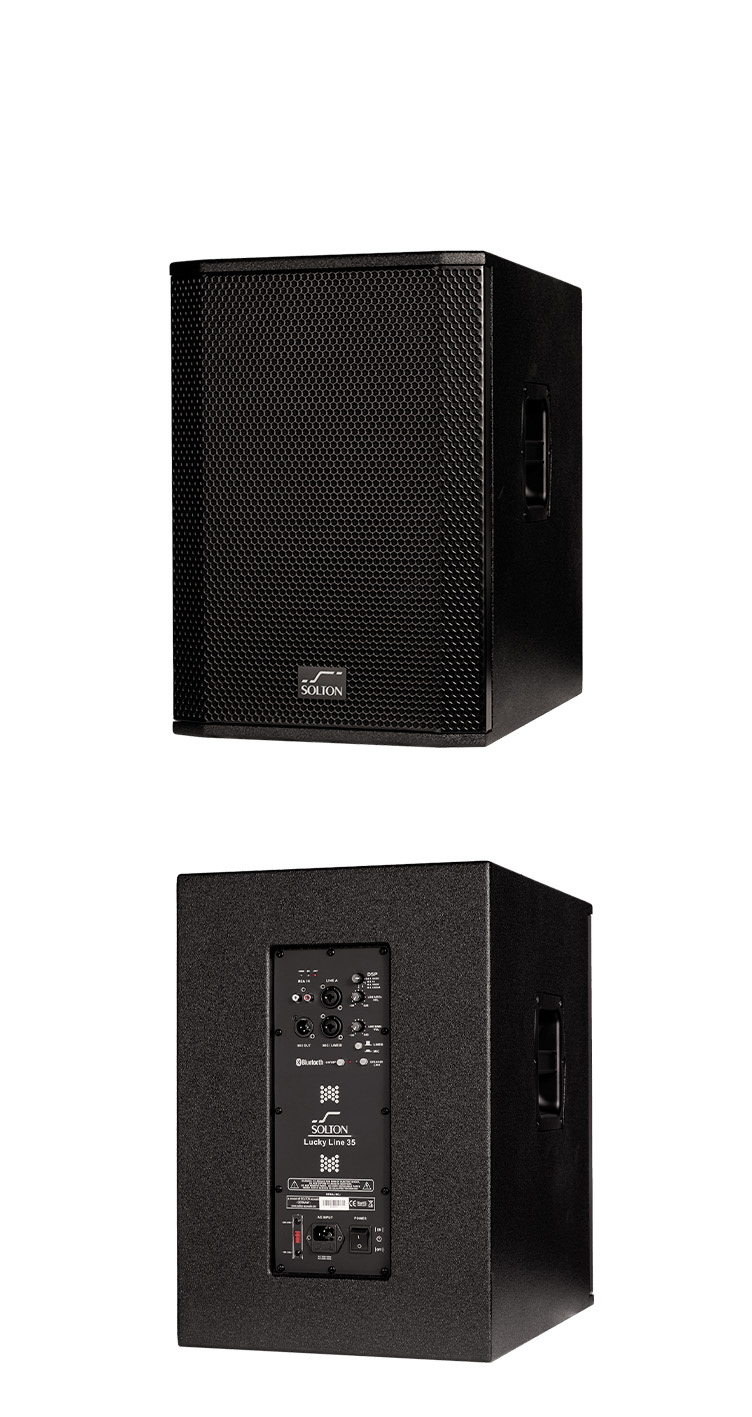

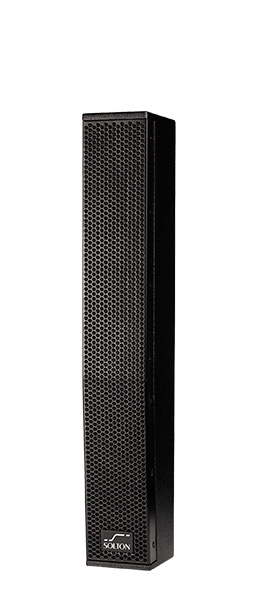

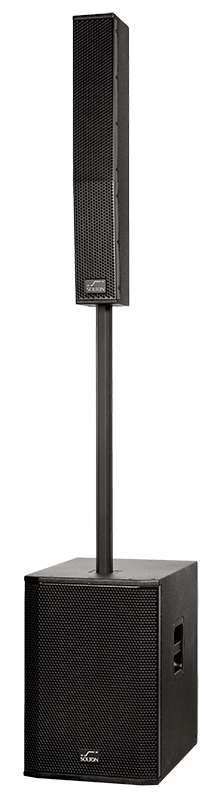

LUCKY LINE 35

Code: 8SILL35

The Lucky Line 35 is an active, portable, three-component column system.

Curved ultra-thin line array features six 3.5-inch drivers arranged for clear, transparent mid and high frequencies.

The 120° of horizontal coverage and 40° of asymmetrical (down-facing) vertical coverage ensure suitable output for sitting and standing audiences.

A compact, high-power 12” subwoofer in a bass-reflex enclosure delivers articulate mids and deep, controlled lows down to 40 Hz.

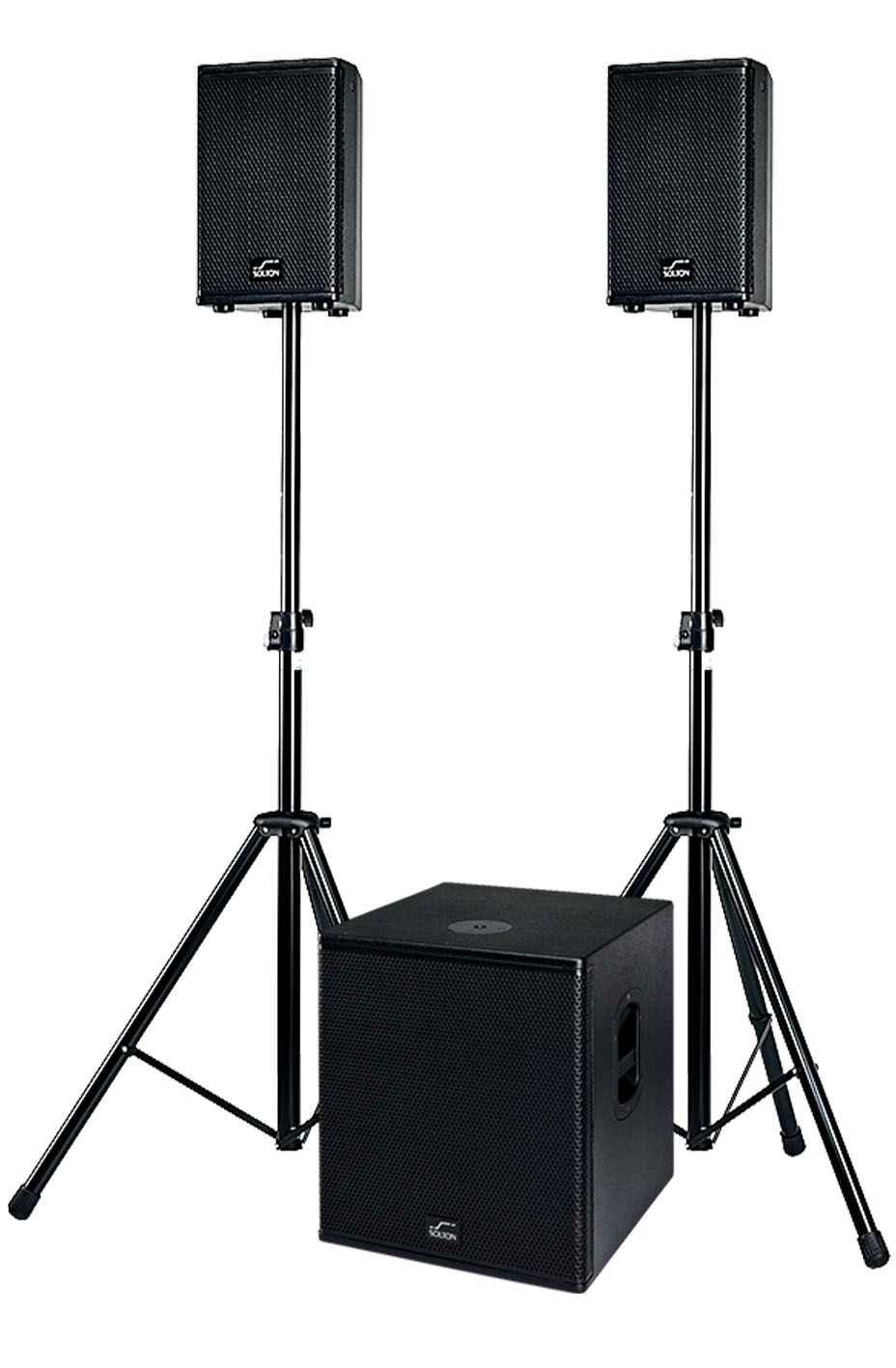

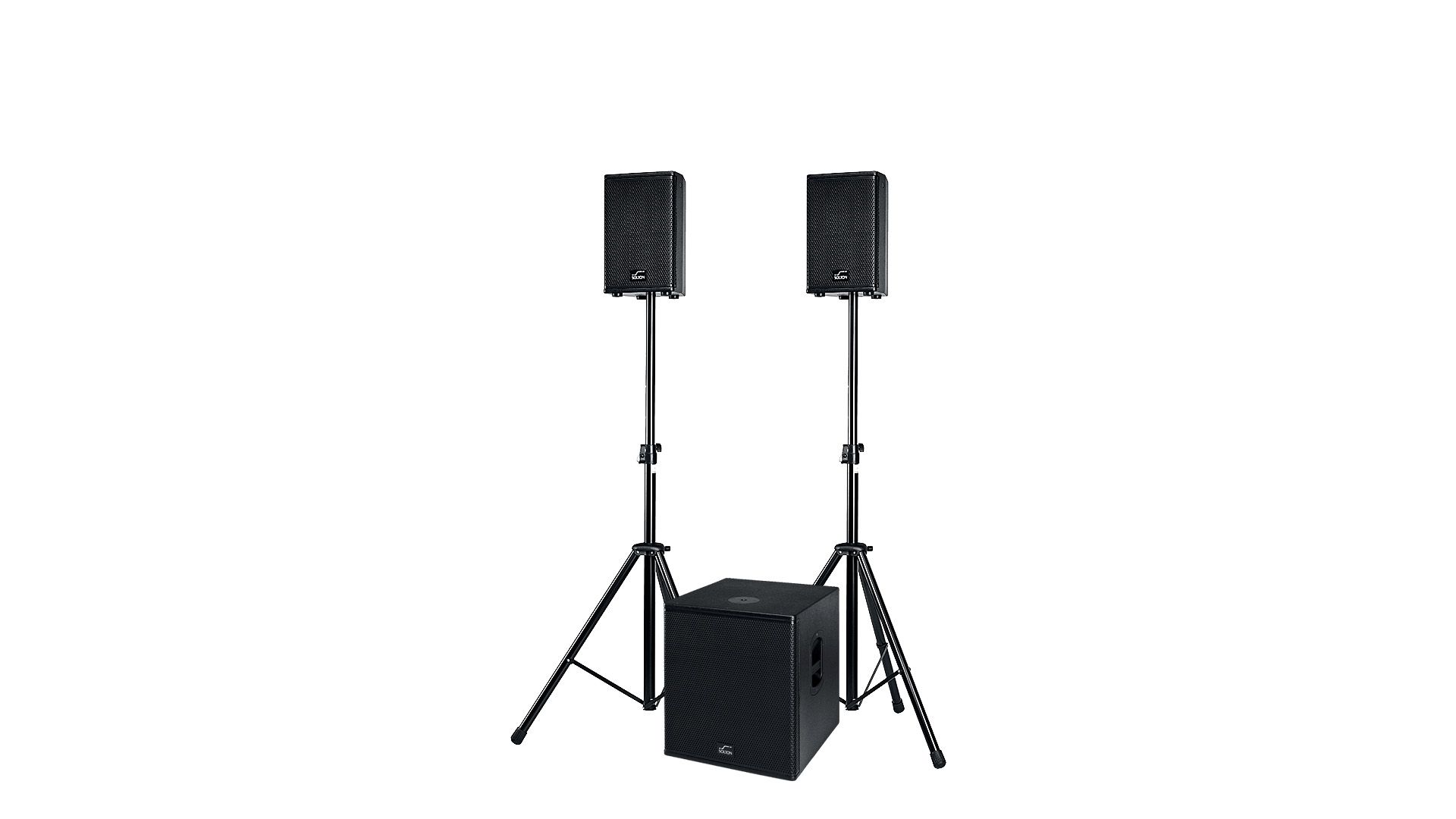

ACT SAT

Code: 8SISAS

A powerful active system!
Consists of 2x T8 and 1x aart SUB 315

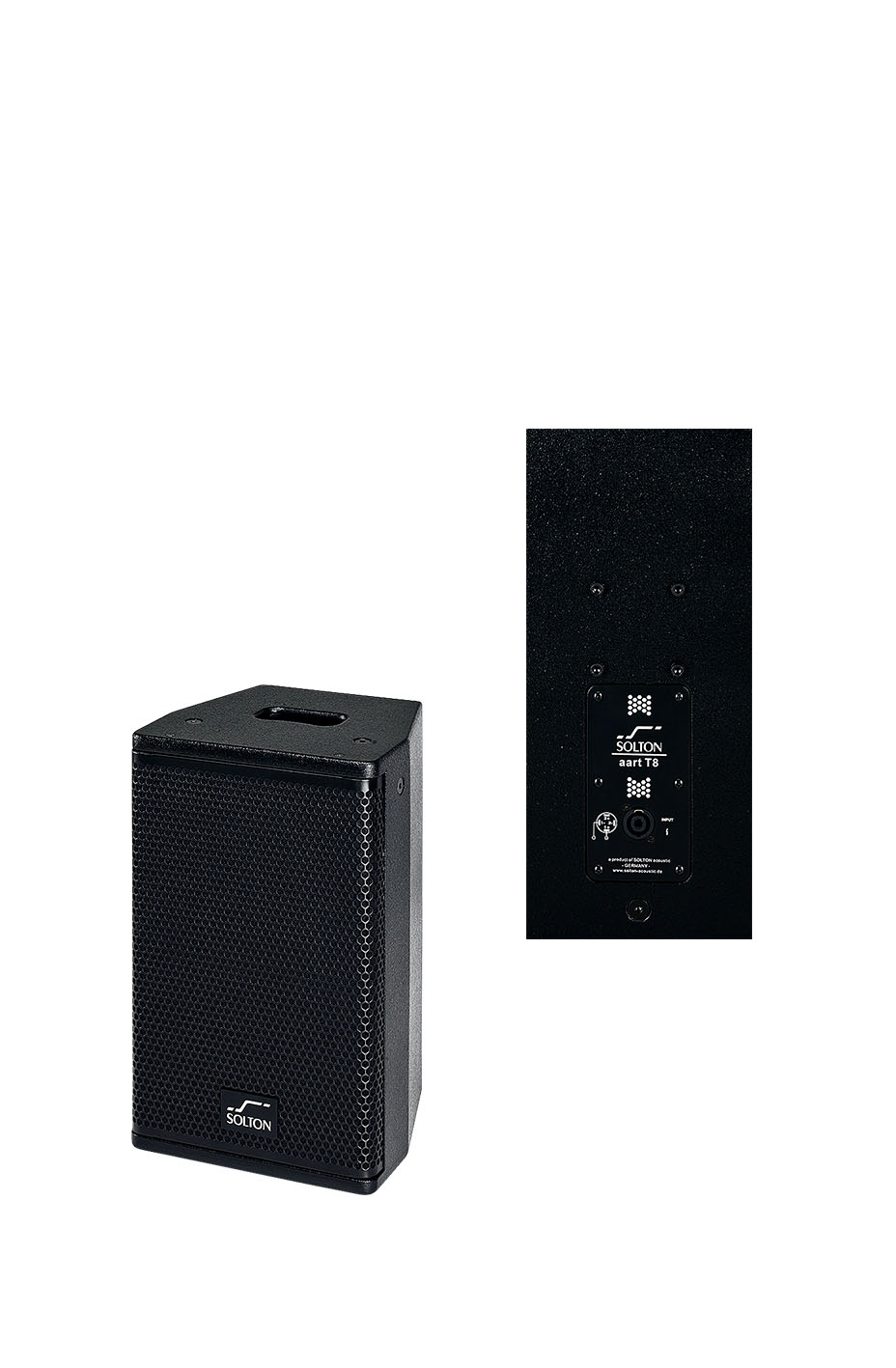

aart T8

The aart T 8 is a two-way high-performance, multipurpose loudspeaker system designed for professional portable and installed applications. With a 90°H x 60°V coverage pattern it combines high output capability with excellent sound performance in a trapezoidal compact enclosure, made of 15 mm plywood.It features a powerful 8”speaker for MF/LF frequency range, and a 1,35” HF compression driver for extended high frequency response. An advanced passive crossover, with PTC driver protection, matches the components working perfectly together and allows fullrange application without additional electronics.The versatile aart 8 suits for speech and music applications as a standalone fullrange loudspeaker or MF/HF speaker in sound reinforcement systems.

Specifications

Type: Fullrange, two-way, passive
Frequency Range (-10dB): 70 Hz – 20 kHz
Frequency Response (+- 3dB): 80 Hz – 18 kHz
Coverage Pattern: H 90° x V 60° nominal (user-rotatable)
Power Handling: 200 W continuous, 800 W peak
System Sensitivity (1w/1m): 95 dB
Maximum SPL (Calculated at 1m): 118 dB continuous, 124 dB peak
HF Driver: 1,35”voice coil, 1” exit compression driver
LF Driver: 8”, 2” VC speaker aaCRAAFT
Nominal Impedance: 4 ohms
Crossover: 2,7 kHz passive
Protection: PTC driver protection
Enclosure: Birch plywood
Finish: Black polyurea coating
Fittings: 7x M8 inserts,1x bar handle, pole-socket, WB 1 wall mount optional
Protective Grille: Black perforated steel with acoustic transparent foam backing
Connectors: 1 x NL4, Pins 1+/1-
Dimensions mm (WxHxD): 263 x 423 x 240
Weight: 8.5 kg

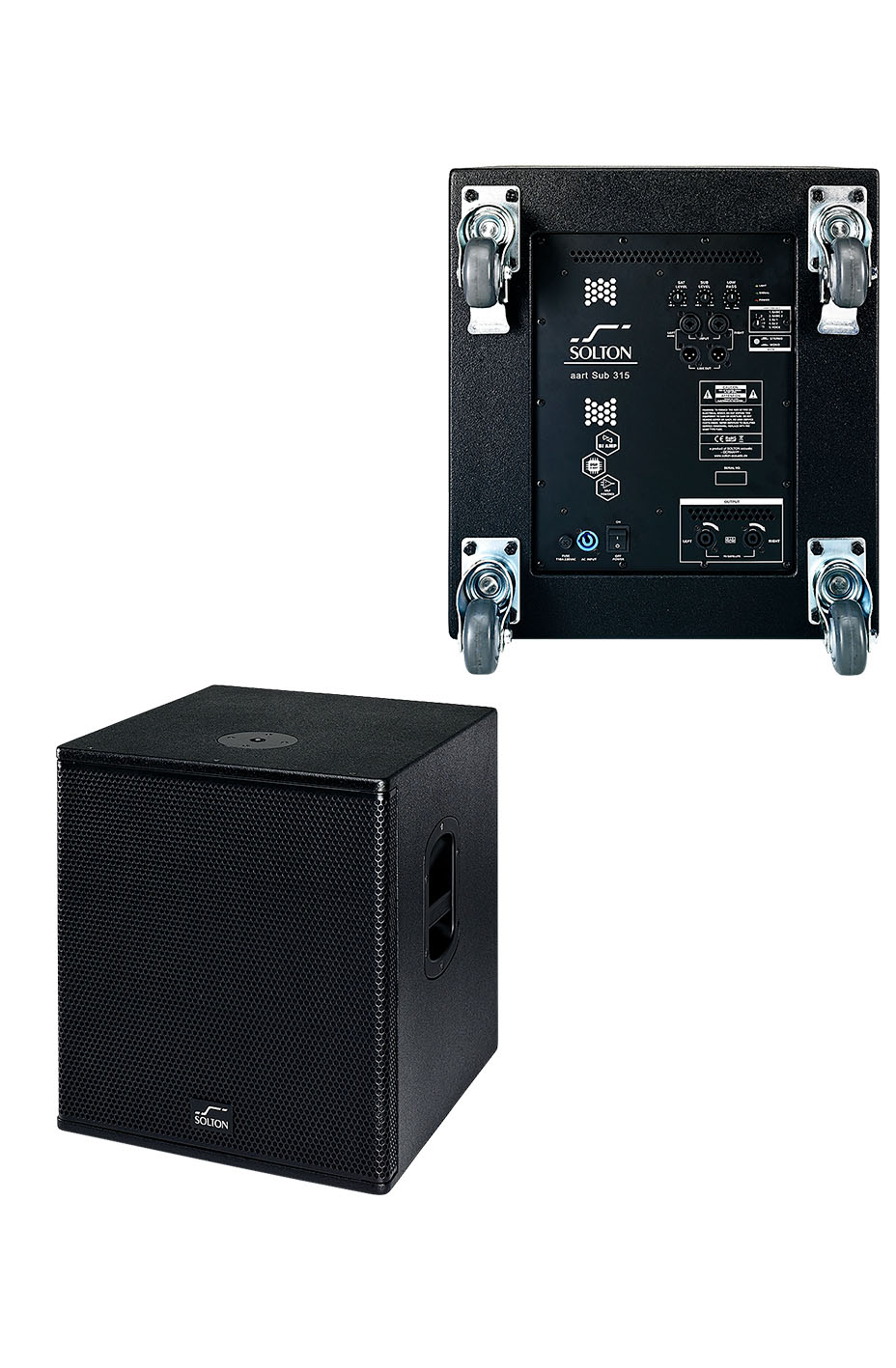

aart SUB 315

The Solton aart Sub 315 is a single 15” self-powered directradiating high performance subwoofer system. It has been designed to add high-output, high-impact bass response to the mid-high and fullrange  loudspeaker systems in various mobile and installed applications. The aart Sub315 features a long-excursion, 15”,4” (100mm) voice coil LF transducer, and a low distortion port design in a compact reflex enclosure made of 15 mm plywood.The integrated high performance Class D amplifiers deliver outstanding dynamic and excellent headroom for the subwoofer and the satellite cabinets as well. For satellites 2x 350 W cont 4ohm, 2x 1050 W peak / For Subwoofer 800 W cont, 2400 W peak. The integrated pole mount socket (M20) enables the use of a distance rod in combination with a MF/HF cabinet as a system. The aart SUB 315 has many features that make it a versatile subwoofer system.

Specifications

Type: Self-powered, Single15”, bass-reflex, subwoofer
Frequency Range (-10dB): 35 Hz -200 Hz
Frequency Response (+- 3dB): 40 Hz – 150 Hz
Coverage Pattern: Omni
Power Handling: TOP 2x 350 W cont 4ohm, 2x 1050 W max / SUB 800 W cont, 2400 W max
System Sensitivity (1w/1m): 99 dB
Maximum SPL (Calculated at 1m): 127 dB continuous, 133 dB peak
LF Driver: 15”, aaCRAAFT, Long stroke 4” voice coil woofer
Crossover: Active / DSP
Protection: Limiter
Active Tuning / Features: 5 DSP presets, Level sub, Level sat, Variable Low-pas freq (Hz), stereo/mono switch
Enclosure: 15 mm birch plywood
Finish: Black polyurea coating
Fittings: 2 x Handles, M20 pole socket, 75mm wheels mounted
Protective Grille: Black perforated steel with acoustic transparent foam backing
Connectors: Line in Left & Right Jack/XLR Combo, Link out Left & Righ XLR
Dimensions mm (WxHxD): 475 x 530 x 620
Weight: 32 kg

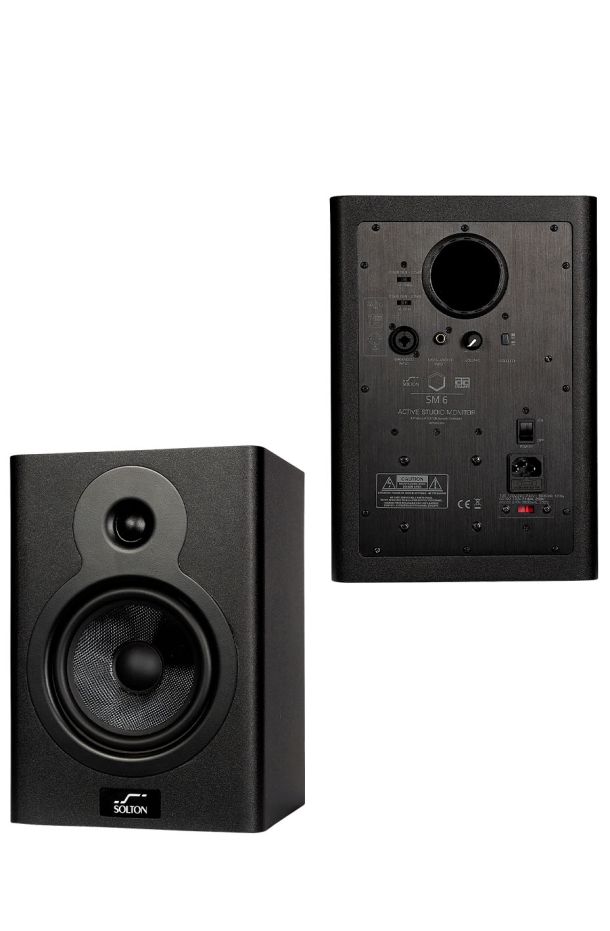

ACTIVE STUDIO MONITOR SM6
Code: 8CASSM6

The SOLTON SM6 is a near-field studio monitor designed as a vertically aligned 2-way system.The SM6 features a 6.5” woofer with Kevlar cone, which enables bass reproduction down to 50 Hz, while the tweeter`s cone offers a pure and extended high frequency range of up to 22 kHz.The metal rear panel of the SM6 houses contains the bass reflex port as well as numerous controls and analogue connections. The tweeter is powered by a 25 watt amplifier, while a 60 watt amplifier drives the woofer. This power pack in a slim housing delivers an impressive maximum sound pressure level of 108 dB SPL per pair.The wide frequency response, wide dynamic
range, excellent transient response and small size make the SM6 ideal for use in small control rooms for music production, video post-production and broadcast.

Specifications

Type: Self-powered, two-way bi-amped, Studio Monitor
Coverage Pattern: H 90° x V 60° nominal
Power Handling: 85 W continuous, 340 W peak
HF Driver: 1” voice coil Neodym
LF Driver: 6,5”, Custom Speaker with Kevlar Cone
Crossover: 2.6 kHz
Protection: Limiter
Active Tuning/Features: HF/LF Trim switch, Logo light switch, power ON/OFF
Enclosure: MDF
Finish: Black, Logo with light
Connectors: 1x XLR/6.35 Jack Combo, 1x RCA
Dimensions mm (WxHxD): 225 x 236 x 324
Weight: 7.8 kg

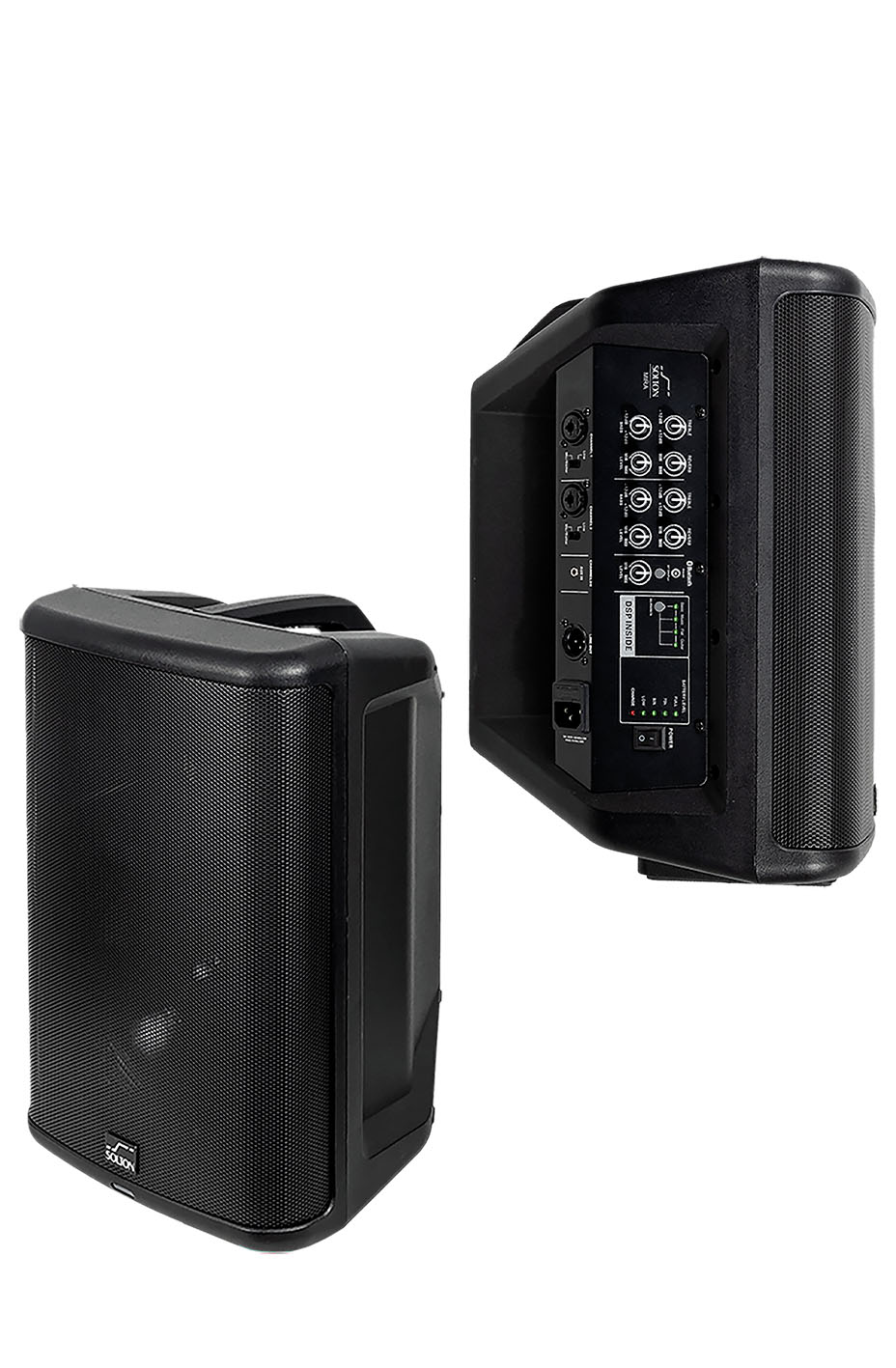

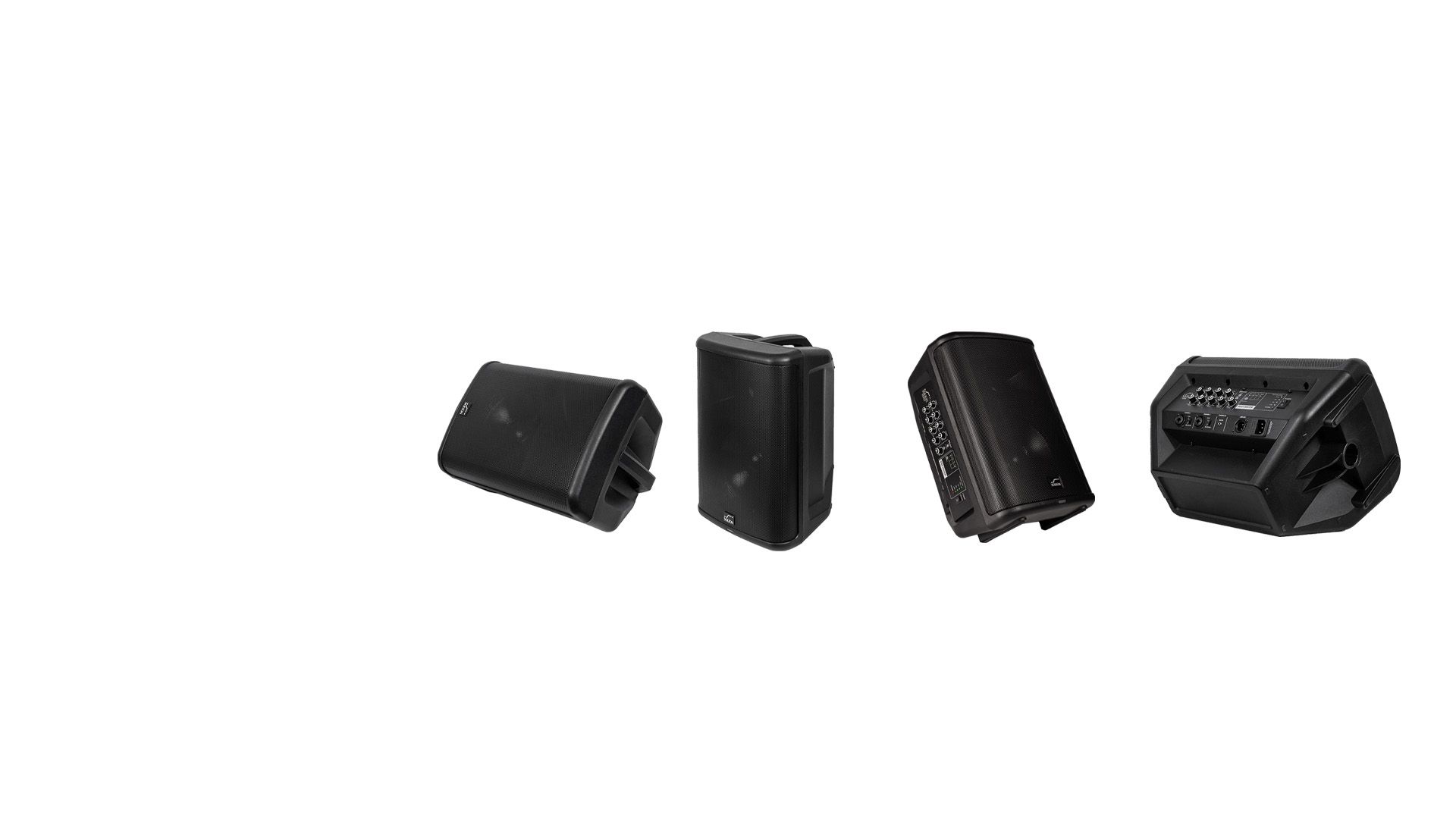

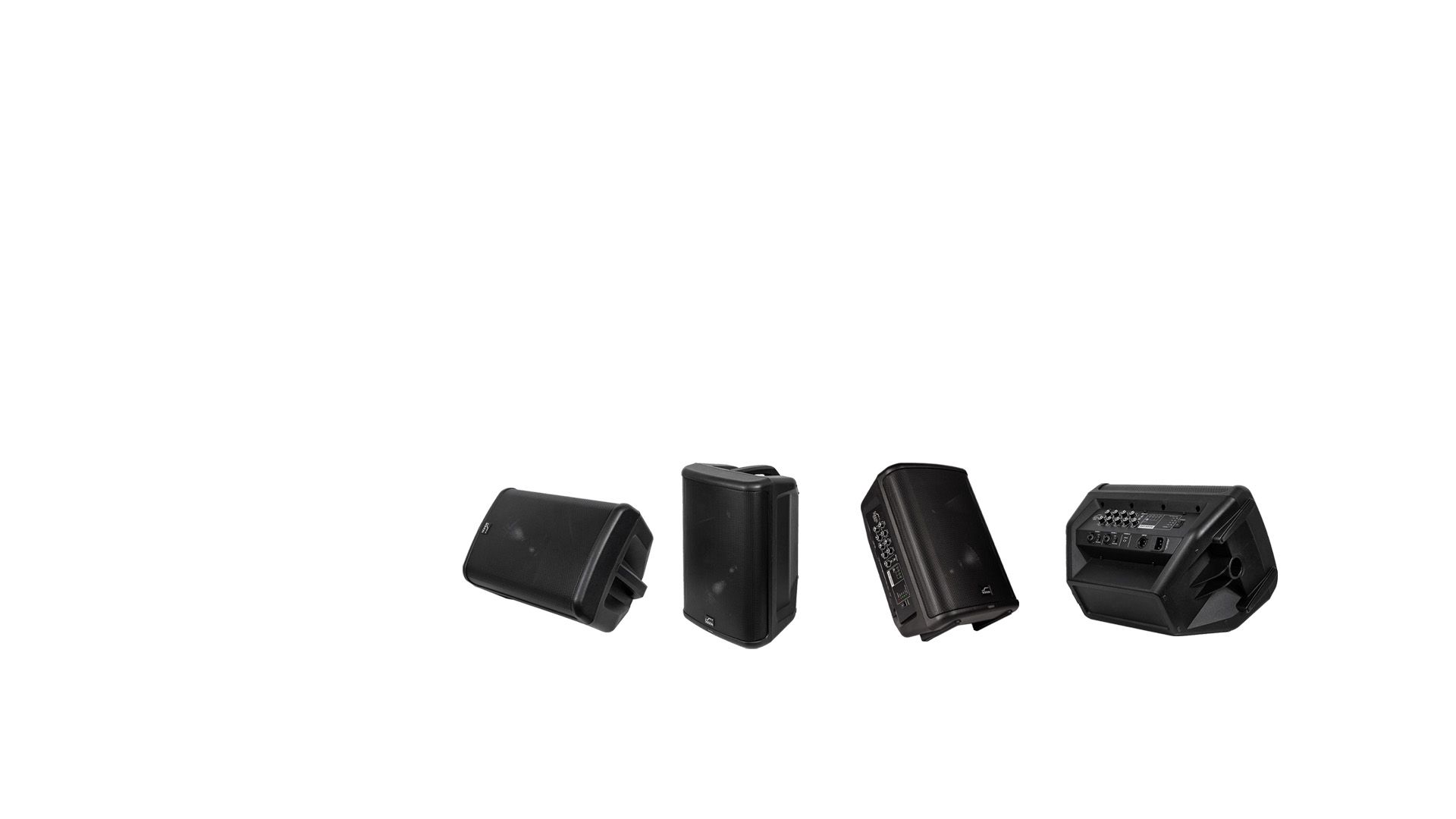

MIRA
Code: 8CASMIRA

MIRA, SOLTON’s first battery-powered speaker, combines perfect sound with the latest technology to provide a truly portable and wireless audio  experience. With an unbeatable price-performance ratio, MIRA sets new standards and surpasses comparable products on the market. Whether for live music, voice amplification or audio playback – MIRA
convinces musicians, DJs, event service providers, fitness and activity trainers as well as professional and leisure users alike. Thanks to its first-class sound quality, intuitive operation and sophisticated all-in-one PA system design, MIRA brings professional audio performance closer to a wider audience than ever before. With a 90° x 60° radiation, MIRA delivers impressive sound despite its compact design.
Equipped with a powerful 8-inch woofer and a precise 1.35- inch titanium tweeter, it sets new standards in its product class – uncompromising in sound and performance.

Specifications

Type: Self-powered, Accu cabinet, multifunctional
Coverage Pattern: H 90° x V 60° nominal
Power Handling: 100 W continuous, 400 W peak
HF Driver: 1,35”voice coil, 1” exit compression driver
LF Driver: 8”, speaker
Protection: Limiter
Active Tuning/Features: 4 DSP presets, 2x Line/Mic IN level, Mix OUT, Bluetooth TWS, Reverb
Enclosure: Multi-angle, PP composite
Finish: Black
Fittings: Handle, pole-mount socket
Protective Grille: Black perforated steel
Connectors: 2x XLR / 6.35 Jack Combo, 1x XLR Out, AUX In
Dimensions mm (WxHxD): 270 x 400 x 280
Weight: 6,8kg

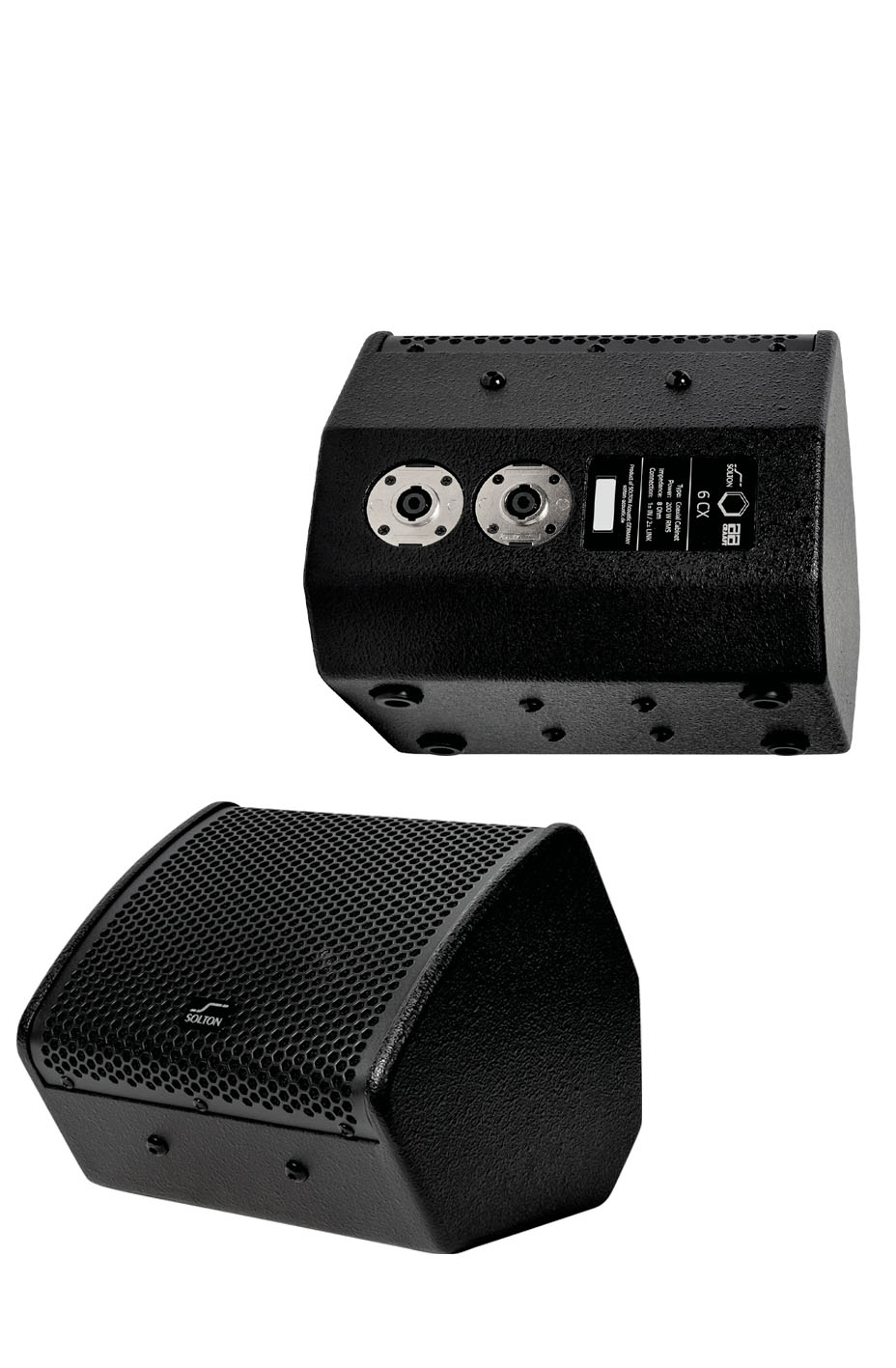

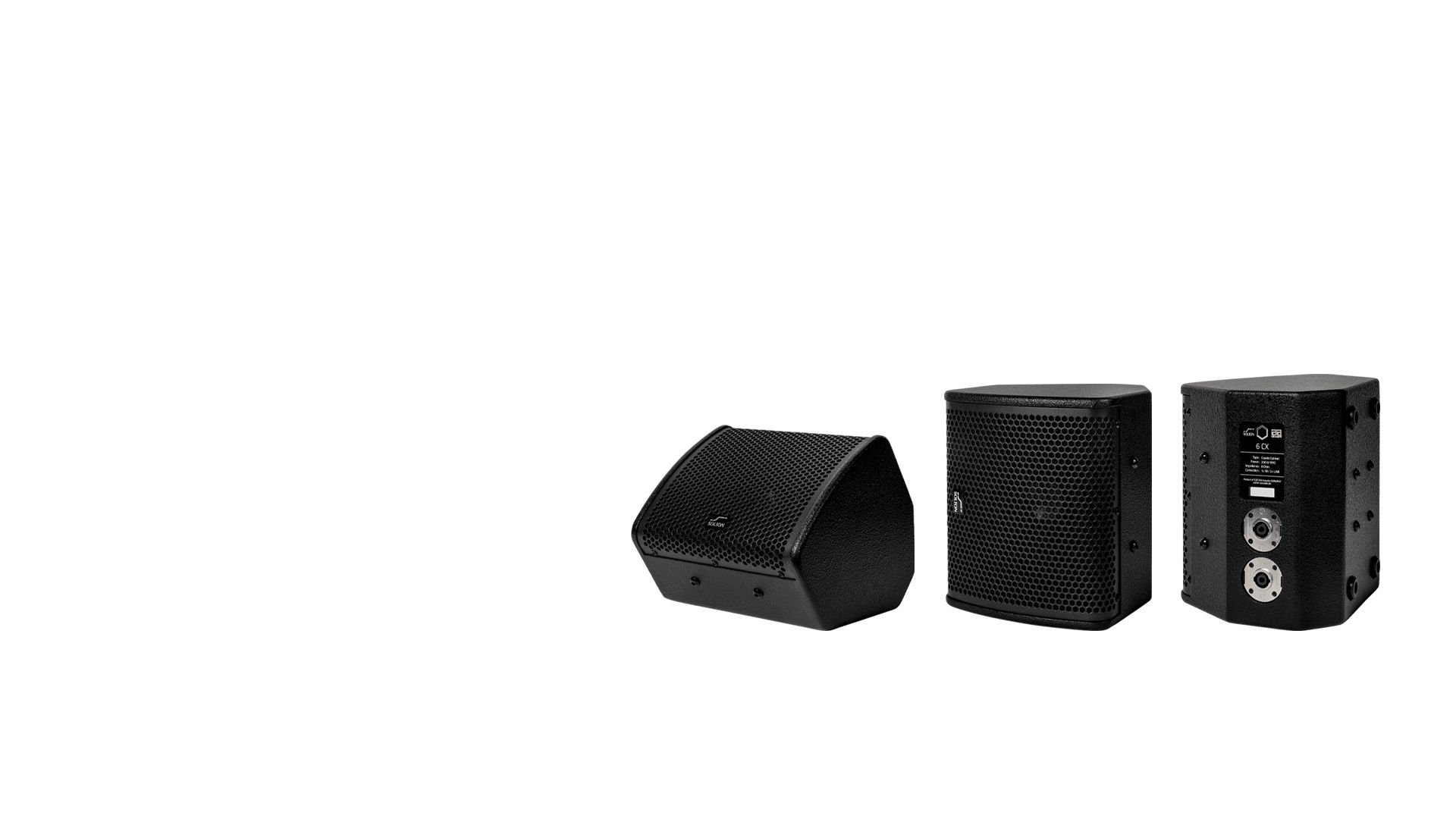

6CX
Code: CAS6CX

The Solton 6CX is a hi-fidelity, 2-way coaxial loudspeaker system, has been designed for variety of professional applications where excellent sound quality, wide bandwidth, and high efficiency are required in a compact package. The 6 CX features one 1,35“ / 1“ exit HF compression driver, and for the MF/LF section one high-performance 6,5” speaker. The coaxial transducer arrangement and advanced passive crossover, with PTC driver protection, matches the components working perfectly together, and producing exceptionally clear output with smooth tonal response.
In combination with a 90° conical directivity its perfect for speech and music reproduction in nearfield.The integral mounting points (M8) and the optional WB1 mounting make deployment such as wall mounted, ceiling-mounted or flown quick and easy.6 CX is well-suited for use stand alone as a main speaker or together with a subwoofer in a smaller environment. Its also well-suited for live monitoring front fill applications with full PA systems , for down-firing applications, such as under balcony or high ceiling commercial spaces.

Specifications

Type: Two-way, Coaxial, Passive, Fullrange
Frequency Range (-10dB): 80 Hz – 20 kHz
Frequency Response (+- 3dB): 90 Hz – 18 kHz
Coverage Pattern: H 90° x V 90° nominal
Power Handling: 180 W continuous, 360 W program
System Sensitivity (1w/1m): 94 dB
Maximum SPL (Calculated at 1m): 117 dB continuous, 120 dB peak
HF Driver: 1,35 VC, compression driver
LF Driver: 6,5” aaCRAAFT
Nominal Impedance: 8 ohms
Crossover: 1.7 kHz
Protection: PTC driver protection
Enclosure: 15 mm birch plywood
Finish: 2 layer, Black textured paint
Fittings: 4 x M8 points, WB1 optional
Protective Grille: Black perforated steel with acoustic transparent foam backing
Connectors: 2x NL 4, 1+/1- IN
Dimensions mm (WxHxD): 260 x 250 x 220
Weight: 5.5 kg
