EVENT X
Sound Module
EVENT X
Sound Module
„The New State of the Art Arranger.“
At Ketron, we have a dream.
We want to craft the most innovative, inspiring and original musical instruments that can ever be produced today with the technology of tomorrow.
This time we have challenged ourselves with more in-depth studies, intense experimental research and hard-working studio sessions, by involving great international musicians.
We aim to offer to professionals and to the most demanding music lovers an instrument that would represent the new State-of-the-Art Arranger module in the world.
We did not stop until we reached the highest quality standards, so that cutting-edge technology could also generate the most realistic sounds.
The result of our hard and passionate work is EVENT-X: try it out and experience what it means to play accompanied by a full band of real musicians.
Now you can play jam sessions with the original sounds of a real electric organ imagining a jazz trio playing behind you. If you love dance music, you can bring EVENT-X with you on stage: the realism of the arrangements will ensure everyone’s attention in a packed lively dance floor.
Playing with EVENT-X is a special emotion. We are delighted to share it with you.

1

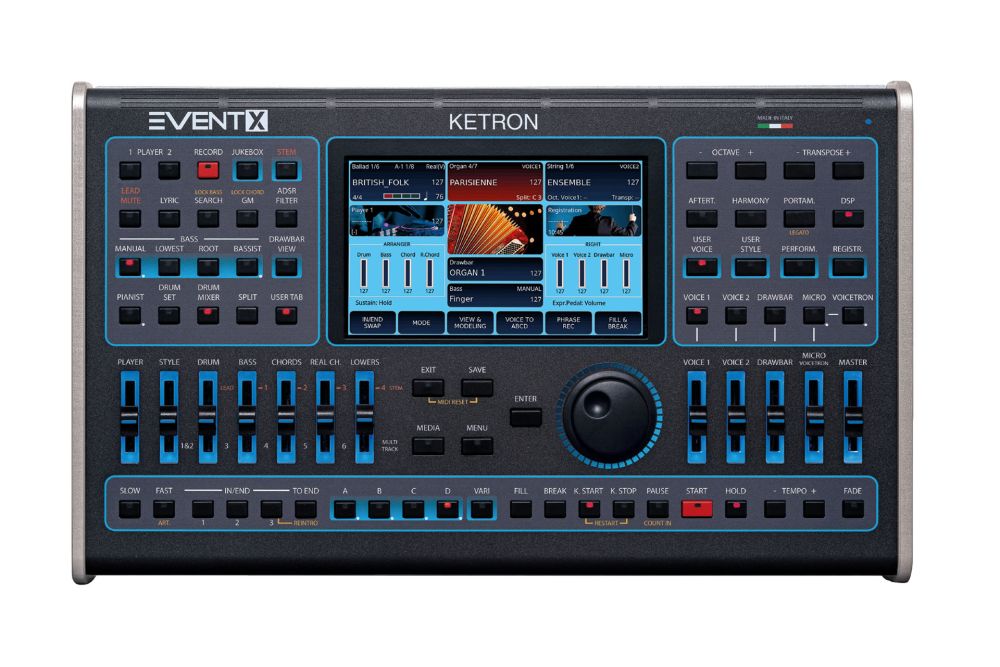

At the top left you can find the area dedicated to the controls of PLAYER, Stem, Bass and Drawbars. Below are the sliders to mix the volume of the different tracks.
2

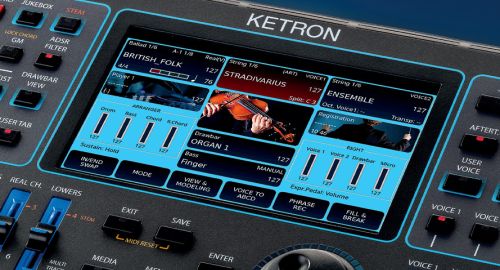

The 7″ touch-sensitive screen sits in the middle of the panel. It displays the instrument’s current operating status. Below you may find the 5 primary keys to control the usability and the Dial knob.
3
On the right side, you can access the various voice types played on the instrument.
4
On the down, you can find the interactive buttons to control styles, tempo, and access the bank of styles and voices. This is the area having dedicated controls for the Accompaniment.

EVENT-X is designed to provide easy access to the most sophisticated style architecture ever developed on an arranger module.
It comes with over 500 Styles, divided into Real Styles, Live Styles or MIDI Styles.
The Real Styles, with their impressive authenticity, stand out thanks to the backing tracks in full audio format.
EVENT-X features a rich manual Lower section, with three independent parts and Mono / Poly modes.You can use the new advanced Style Edit to program your new styles and save any customized configuration in the User memory.
The rhythm section features over 580 Real Drums and complete drum patterns with Intro, Ending, 4 Variations, Fill and Break, covering a wide variety of musical genres. Unlike other musical instruments, where the rhythmic sequences are mostly short loops controlled via MIDI, EVENT-X has real studio recordings of professional drummers available in eight or more measures, without any cuts or editing. The result is incredibly smooth and natural.
EVENT-X provides Real Drum track equalization, as well as the Drum Lock mode which loops the rhythmic pattern that is being played.
Furthermore, there are 94 new stereo Drum Sets: with Drum Mixer and Remap, you can reassign the individual percussion sounds and save them in one of the 32 available User Drum locations.
The Groove section is outstanding, with over 700 percussive sequences, three independent Groove parts that control House, Hip Hop and Latin loops, as well as an amazing variety of Afro-Cuban, Brazilian or Latin percussion instruments, including Conga, Shaker, Maracas, Cowbell, Cajon, Tambourine and many more.
EVENT-X’s bass section provides a wonderful library of 256 Real Bass: bass lines that are recorded in the studio by real bass players on various tones and perfectly synchronized with the rhythm of the style.
It is impossible to not be carried away by the energy of these bass lines, from traditional Ballads, Soul rhythms, to Disco Funk.
The tone color, the various keys correct positions on the neck and all the natural vibes of the performer give the sensation of playing with a real bassist next to you!
Real Bass adapts naturally to chord changes, as if it were a normal MIDI bass, even playing To Lowest mode with the bass upside down on the lowest note!
It is very easy to switch between MIDI and Audio bass in real time (Twin Bass), modify the voice of the Real Bass using a parametric equalizer or lock the current set using the Lock Bass mode.
The series of functions available for Bass such as Manual, To Lowest, To Root and Bassist are particularly refined: for example, the latter recognizes the chord by combining the notes played both on the right part and on the Manual bass part. Finally, the Multibass supports custom Bass progressions for various chords.
Real Chord is at the same time the most elaborate and entertaining feature of EVENT-X. You can control many guitar tracks or other instruments in real time: everything can be performed on several tonalities, including all chords on the scale.
More than 300 Real Chords, including a wide variety of recordings such as Folk, Jazz, Nylon, Electric guitar, and other instruments too like sax, harmonica, violin, trumpet and so on, all perfectly synchronized with MIDI into the arranger architecture.
The Real Chord features a dedicated EFX Insert with Chorus, Eq, Overdrive, Phaser, Wah and other effects.
The Real Chord pattern can be locked using the Lock Chord function to obtain “ostinato” peculiar of the Disco Funk genre.
Just listen to one of the EVENT-X’s Unplugged styles and get ready to be amazed by the authentic sound of a simple acoustic guitar. EVENT-X also has a vast library of Live Guitars (guitar loops managed by slices and controlled via MIDI), Long Chord and five MIDI chords, capable of playing simultaneously and with different voices and volume.
Another noteworthy feature is the Multichord section, with piano accompaniments, strings and other orchestral parts programmed for any given tones.
The powerful Audio Style Modeling system was engineered to offer an enormous variety of musical solutions,
with the possibility of managing both the audio tracks of Real Drum, Real Bass and Real Chord and the orchestral MIDI tracks that you want to add to the arrangement.
Navigation is easy and you can create new rhythmic or harmonic patterns within a few seconds.
EVENT-X is also expandable: you can customize it by adding sounds and styles as well as audio recordings of rhythm, bass and chords.
EVENT-X delivers premium sound quality and top-tier voices as we want to deliver the best-in-class professional arranger.
10 Sounds banks come with a brand new acoustic Grand Piano, a series of Multilayer Electric Pianos, an incredible selection of Strings and Brass, new acoustic and electric guitars, a completely renewed series of Pad, Synth, Bass and Ethnic voices.
The instrument features 2 Voice sections, each capable of handling up to 3 simultaneous voices with 2 separate EFX Inserts.
The Real Solos are solo instruments such as Trumpet, Violin, Sax, Flute, Oboe etc. with distinctive sounds, refined controls over Aftertouch, Round Robin, Articulation and natural decay of samples, all for delivering the authentic feel of real musicians playing. The Organ section is crafted with particular attention: a rich selection of sounds from original electric organs that can be mixed with the digital Drawbars, combining the high quality textures of the first with the real organ fell of the latter (Twin Organ).
In addition to the outstanding internal voice editing system, EVENT-X also features a new 2.5 GB User Sampler: you can upload new factory sound banks (SBK) on the non-volatile Flash memory or create new custom sounds on up to 4 stereo layers.
EVENT-X features a microphone menu with 2 inputs (Micro 1 and Micro 2) with relative gain controls and new dedicated effects, as well as an individual audio output for the Micro 1.
The Voicetron section has been revamped with new harmony effects and many parametric controls for an accurate tone customization.
The two integrated multimedia players can play a wide range of formats: MIDI, MP3, WAV, TXT, PDF, MP4 and many more. They are equipped with all the classic Karaoke functions such as viewing the Lyrics on an external display, Lead Mute, Crossfade, Search and Fade Out. Use Markers to reach different positions in songs, such as the beginning of a new verse or the end of the chorus.
The new JukeBox offers quick access to different selections of music tracks, allowing performers to easily control their gig’s workflow.
Stem plays up to five audio tracks simultaneously in perfect sync. Each audio track has individual Mute and Volume controls, it is also possible to change its pitch and Tempo without altering the pitch of the rhythm. It is also possible to exclude one or more tracks from playback, for example Piano or Bass, in case you want to play them live. A typical use of Stem is the playback of backing tracks with or without singing (Minus One), a particularly useful application for singers, guitarists in a live performance, but also for reed instrument soloists such as sax or trumpet.
When controlled by a MIDI accordion, EVENT-X becomes the hearth of the show. Using the Classic mode, the accordionist can select different sounds for the right and the left hand. These combinations can be saved as Registrations and can be recalled in any moment of the performance. The jazz accordionist can also greatly benefit from the internal drum styles.
VENT-X has dedicated connections for audio, video and file management.
The high impedance and balanced inputs allow you to connect any sound source to the module, such as a microphone, a guitar, a smartphone, or a tablet. Connect a compatible HDMI touchscreen monitor to display the lyrics or to control the instrument in mirror mode.
A bigger control surface offers more flexibility and an easier access to all the EVENT-X functions, both in studio and on stage. In addition to the physical connections, Bluetooth and wireless modules allow you to stream audio from external devices, such as smartphones and tablets and remote control the instrument.
-
Polyphony: 216 notes, multitimbral.
-
Controls: 12 sliders with RGB LED indicator. Brightness and color controls. 4 Dynamic Curves. Aftertouch. Portamento. Legato Mono_Poly. Transposer -/+ 24. Octave +/- 2. Expr. Pedal with 6 curves.
-
Display: 7″ capacitive touch. Brightness control. 5 different skin colors.
-
Factory sounds: 10 voice groups: Piano, Strings, Organ, Brass, Sax, Pad, Synth, Guitar, Bass, Ethnic. 464 preset voices. Voice 1, Voice 2, each voice with up to 3 different sounds. Towbars. Advanced factory voice editing. High-quality multi-layered sounds with a large selection of real solos ®. Overwrite and restore factory settings. Up to 1,280 user voices available. Arabic scale and programmable key shift per voice.
-
User sounds: 2.5 GB of free storage space in non-volatile Flash memory (1.5 GB for additional factory sound banks – 1 GB for user samples).
Sample Editor: Up to 228,480 samples (mono, 8,192 usable, max 6 seconds per sample). Up to 4 layered stereo instruments (voice or drums). Advanced editor with Split, Octave, Level, Range, Tune, Cut off, Velocity, Adsr. Sample Loop utility. User drums. -
Adsr/Filter: Separate audio controls for attack, decay, sustain, LFO, cut off and resonance.
-
Drums Set: 62 stereo drum kits. 32 user drum kits with Remap, Filter, Tune, FX controls. Drum Mixer: 9 sections with separate controls for level, pan, reverb, pitch, velocity compression. 86 Midi Drum styles (Patterns) available in Grv1_Loop section.
-
Drawowbars: 9 digital timpani. Slow-fast rotor. Overdrive, Click, Vibrato, Reverb, Percussion. Full programmability. 24 organ presets. Twin Organ: ability to mix PCM and Digital organ tones for wide stereo sound reproduction.
Arranger: Over 500 styles. Real Styles, with a mix of Midi and audio parts (see below), Live and Midi Styles. 10 groups: Ballad, Pop, Dance, Rock, Swing, Latin, Country, Folk, Party, Unplugged. 3 Intro, 3 Outro, Fill to End, ABCD, 4 Fills, 4 Rests. Reintro, Count in, Rest, Key Start, Key Stop, Variation. -
Arranger: 5 midi chords and bass. Close, Parallel, Logic modes. 3 x lower with Mono / Poly function. Chord variation. Varitone. Voice for ABCD. Auto fill, fill to arrange, fill for aftertouch. Chord modes: Easy1, Easy2, Easy3, Fingered 1, Fingered 2. Orchestra. Morphing variation. Rootless mode. Manual bass, at minimum, at root. Bassist and pianist modes (Standard / Expert). Bass and Chord Lock.
-
Live Drums: 580 Live Drums with a complete Arranger structure (3 Intros, 3 Endings, ABCD, 4 Fills, 4 Breaks). Reverb and 3-band parametric EQ with 10 presets, programmable on each style. Drum push. Ability to load external user Live Drums. Drum block.
-
Grooves: 3 x independent groove sections. Huge library of over 780 Latin percussions, electronic and acoustic drum loops, single percussion hits. Groove to variation. Separate controls for volume and EFX.
-
Live Guitars: 216 sliced guitar models including long chords. Separate controls for volume and EFX.
-
Real Chord: More than 300 real audio accompaniments covering a full range of chords (up to 13 different chords). A wide variety of electric, acoustic and jazz guitar patterns and other orchestral sequences perfectly synchronized with Midi. Dedicated EFX insert with full editor, programmable for each style. Possibility to load external real user chords.
-
Real Bass: 256 Real Audio Basses synchronized with Midi. Twin Bass: Possibility to change Midi or Audio on the same style. Support for external User Audio Basses. 3-band parametric EQ with 10 presets, programmable for each style. Possibility to load External User Real Basses.
-
Style Modeling: Browse and choose Drums, Groove, Bass and Chords from the huge Midi and Audio library. Multichord and Multibass models.
-
Style Editing: Advanced pattern recording and editing. Copy, Quantize, Velocity, Octave functions. Special quantization available for oriental styles (7/8, 9/8, 13/8, etc.).
-
Recordings: 4 banks with unlimited recordings that control the global configuration of the keyboard.
-
Performance: Provides quick access to styles, recordings with Style, Mp3, Wav or Midi files. 7 sets with unlimited storage space for files.
-
Play Modes: Master, Accord/Style, Accord/Classic, Organist.
-
Phrase: Real-time recording and playback for Style chord sequences.
-
Footswitch: 4 programmable sets. Assignable to the most relevant functions and features of the machine.
-
Arabic Scale: 16 sets. 6 scale memories.
-
Dsp: Arranger chords, 1 Insert to Real Chord. 64 Single Presets and 64 Chain Effects. Deep editing.
- Stem: 4 Scenes. 5 audio tracks per scene to be played simultaneously. Lead track, Transpose, Time Stretching, Loop, Solo, Mute, Autoplay. Fixed pitch for Drum section. Support for external User Stems.
- Player: 2 separate Player units feat. Transpose, Audio Time stretching, GM, Jukebox, Playlists, Drum Remix, Markers, Lyrics, Cross Fade, Search, PFL, Midi Mix, Karaoke Backgrounds. Support for wav, midi, mp3, mp4, avi, mov, flv, cdg, jpg, png, txt and pdf files.
- HD Recording: 1 stereo audio track. Midi and Song Style recording.
- Audio Multitrack: 5+1 audio tracks with separate slider control.
- Micro: 2 x Micro inputs. Micro 1 (XLR) with gain control. Effect with Reverb, Delay, Equalizer, Pitch shift. Micro 2 (jack) with volume and reverb control.
- Voicetron: 3 voice vocalizer. Assignable to Arranger or Midi file with Presets, Equalizer, Mode functions.
- Video: HDMI connection for displaying lyrics, pictures, and videos. Mirror mode. Up to Full HD Resolution. Support for external touchscreen displays.
- Bluetooth: Streaming audio input (ad2p profile).
- Wi_Fi: Networked remote control via KETRON app.
- Storage: 240 GB internal SSD disk (80 GB reserved for System). Optional external SD Card (up to 512 GB).

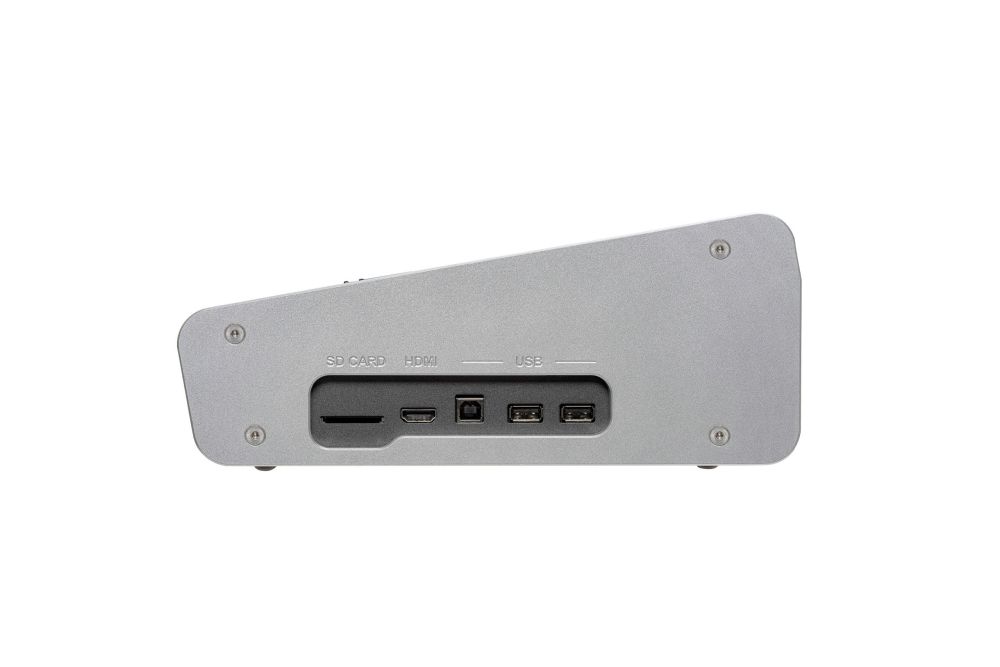

- Side Connections: 2 x USB device. USB Host. HDMI.

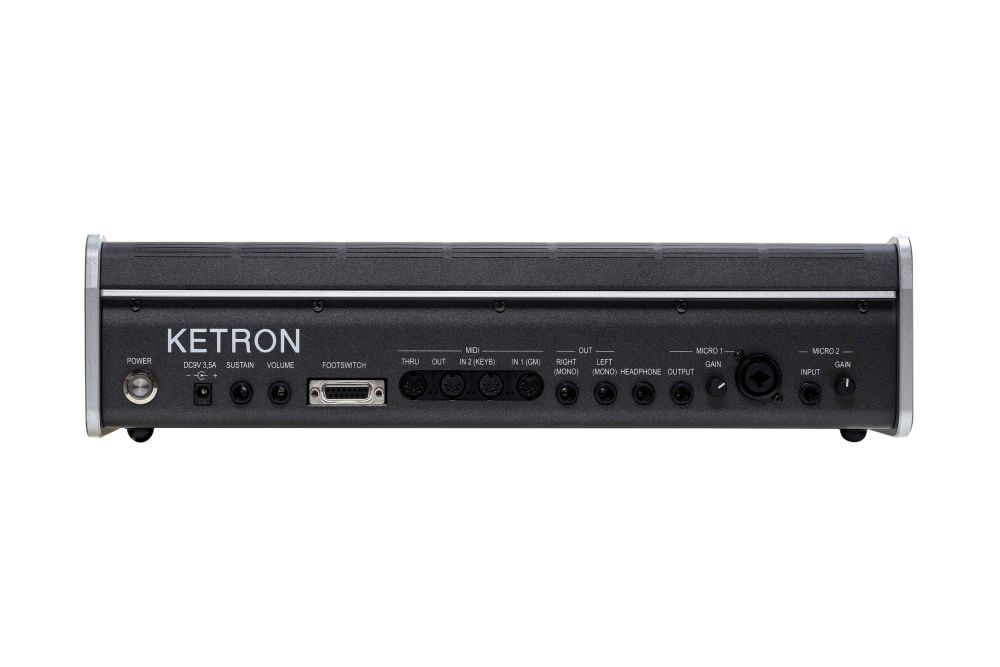

- Rear Connections: Main Out Left / Right. Headphone. Sustain pedal. Volume pedal. Footswitch. Midi In1, Midi In2, Out, Thru. Micro 1, Micro 2.
- Optional: Volume pedal normal or deluxe. Sustain pedal normal or piano type (available also with Footswitch connector). Footswitch 6 or 13 switches. Midi Pedalboard 13 notes (K8). Soft bag. Hard case.
- Dim. / Weight: 43 x 26 x 10,5 cm (16,9 x 10,2 x 4,1 in) / 3,9 Kg (8,6 lbs.)
